LED New Construction Down Light

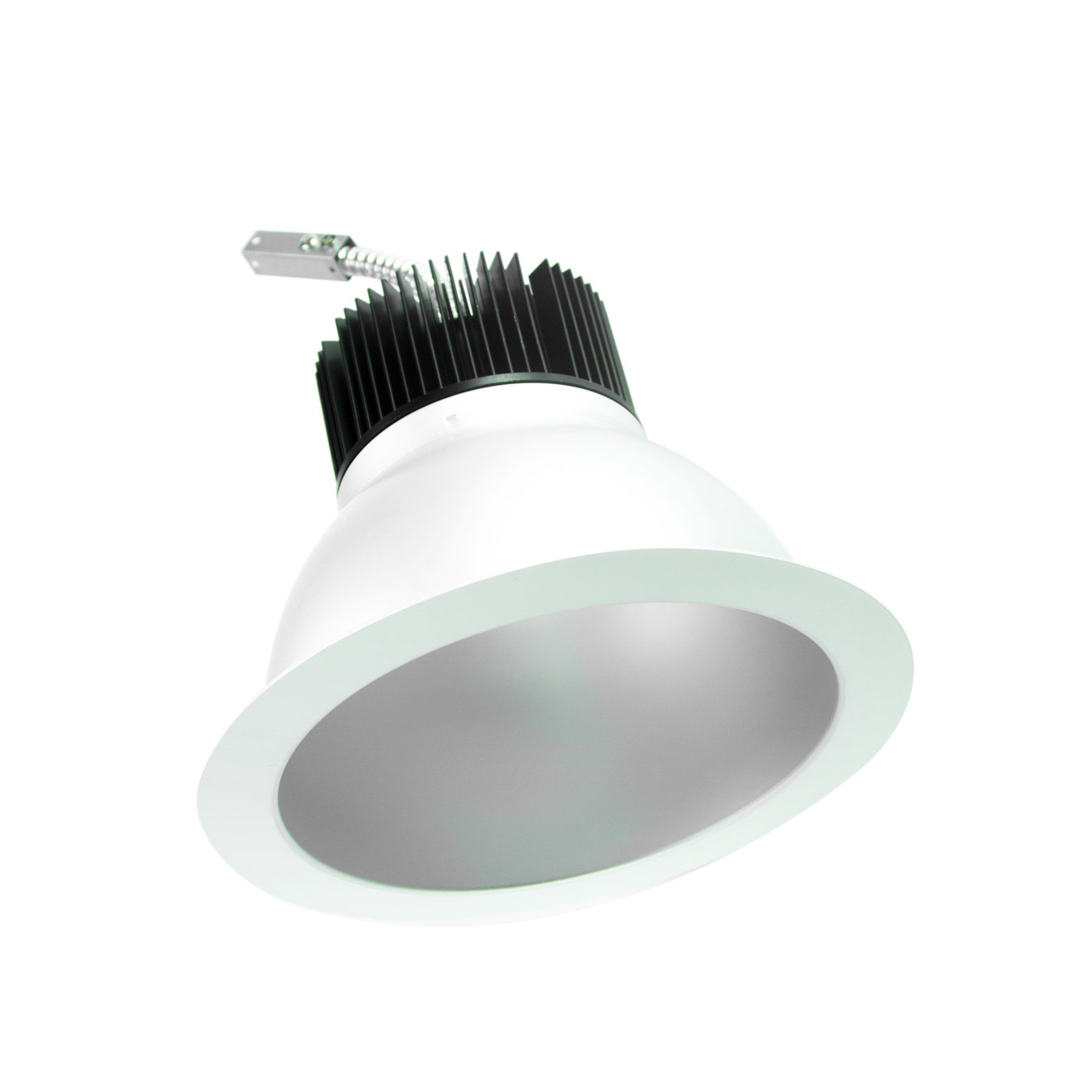

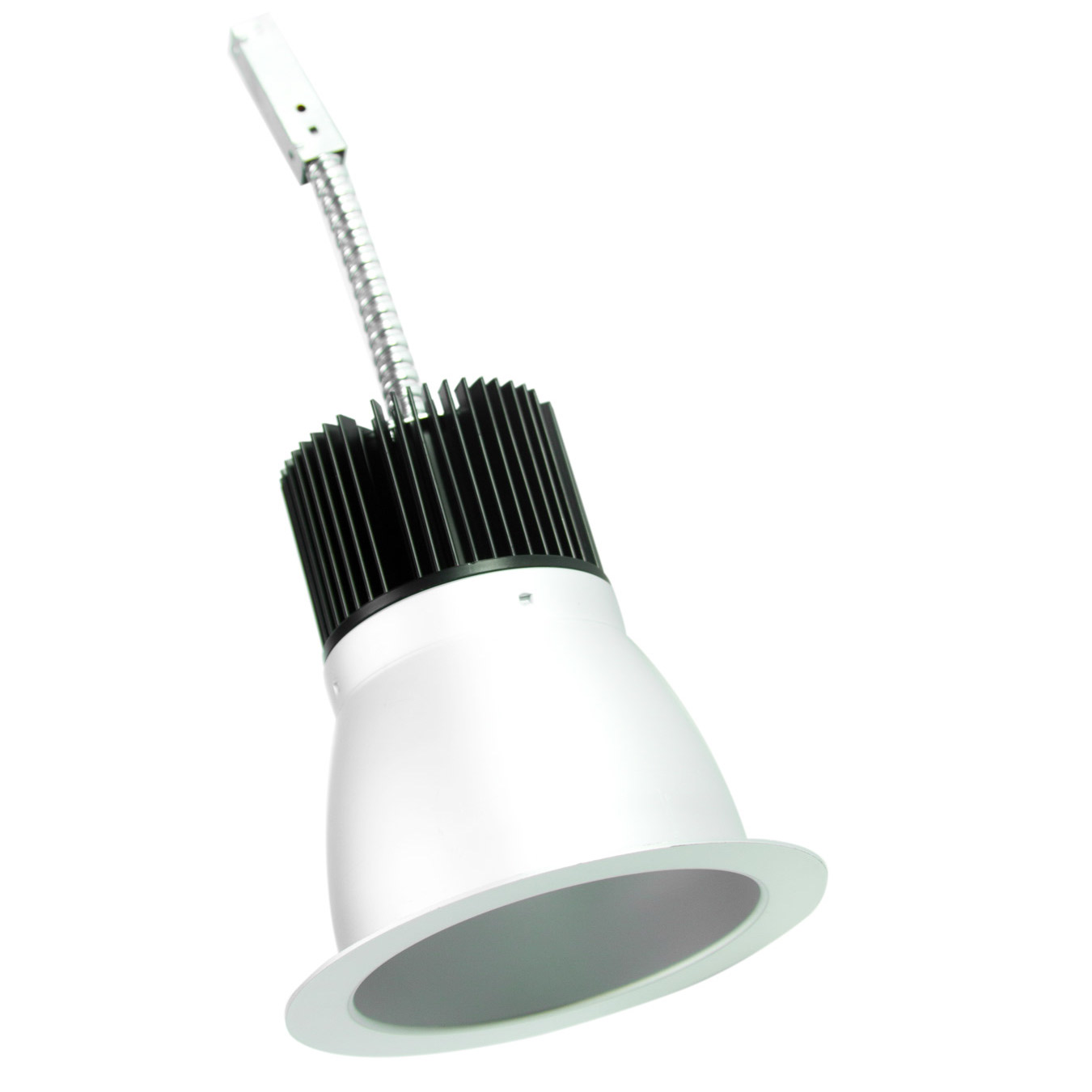

The Kobi Electric LED New Construction Down Light models are available in standard 4″, 6″ and 8″ sizes. Each model is available in 4000k and 5000k color temperatures. They are designed for installation in commercial and industrial construction projects. The LED driver is integrated into the frame-in unit and are sold separately from the trims that house the light. These products meet Energy Star standards. New Construction Down Lights provide high-quality light for retail, office, and other commercial and industrial spaces.

Trims/Lights and Driver Integrated Frame-In Units are sold separately. Kobi Electric trims/lights must be used with Kobi Electric frame-in units to ensure proper operation.

For smaller downlights, see:
LED 2 Inch Down Lights

Benefits

  • Up to 80% more efficient than incandescent bulbs
  • Longer life and lower maintenance costs
  • Dimmable 0-10 volts
  • Mercury and Lead-free, as well as UV and IR free
  • Instant on to full brightness
  • Damp location rated
Category:
Description

SPECIFICATION

PART NUMBER SIZE (INCH) WATTAGE (W) VOLTAGE (V) COLOR (K) TYPICAL LUMENS CRI DIM
AP-NDL4-15-40-WFL-CWH-MV 4 17 120-277 4000 1100 >80 0-10V
AP-NDL4-15-50-WFL-CWH-MV 4 17 120-277 5000 1000 >80 0-10V
AP-NDL6-28-40-WFL-CWH-MV 6 32 120-277 4000 2200 >80 0-10V
AP-NDL6-28-50-WFL-CWH-MV 6 32 120-277 5000 2400 >80 0-10V
AP-NDL6-40-40-WFL-CWH-MV 6 42 120-277 4000 2950 >80 0-10V
AP-NDL6-40-50-WFL-CWH-MV 6 42 120-277 5000 3400 >80 0-10V
AP-NDL8-40-40-WFL-CWH-MV 8 43 120-277 4000 3050 >80 0-10V
AP-NDL8-40-50-WFL-CWH-MV 8 43 120-277 5000 3450 >80 0-10V
AP-NDL8-52-40-WFL-CWH-MV 8 55 120-277 4000 3600 >80 0-10V
AP-NDL8-52-50-WFL-CWH-MV 8 55 120-277 5000 4350 >80 0-10V

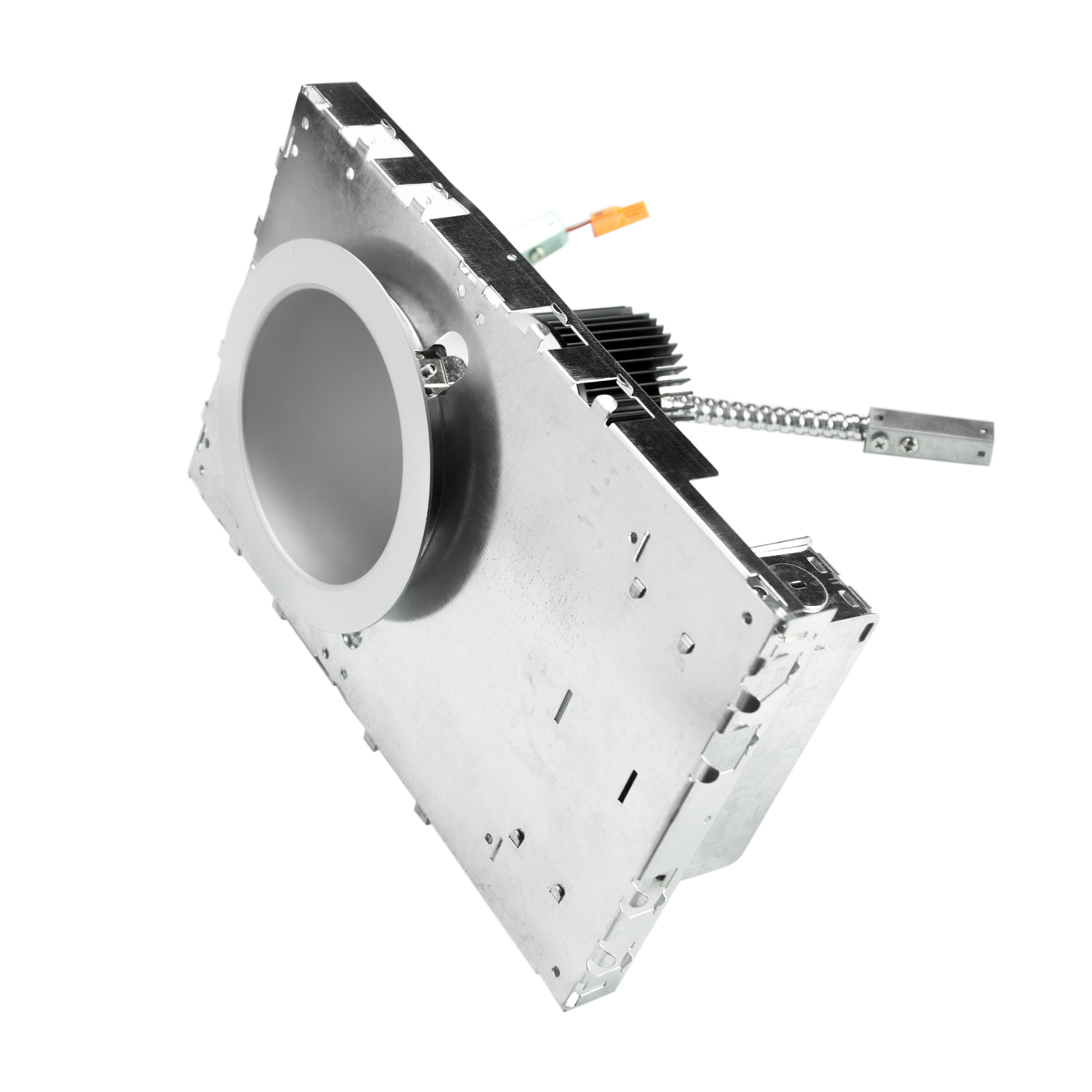

Driver Integrated Frame-In Units
PART NUMBER DESCRIPTION VOLTAGE (V) DIM
AP-PF4-15 4″ Frame-In Unit 120-277 0-10V
AP-PF6-28 6″ Frame-In Unit 120-277 0-10V
AP-PF6-40 6″ Frame-In Unite 120-277 0-10V
AP-PF8-40 8″ Frame-In Unit 120-277 0-10V
AP-PF8-52 8″ Frame-In Unit 120-277 0-10V
