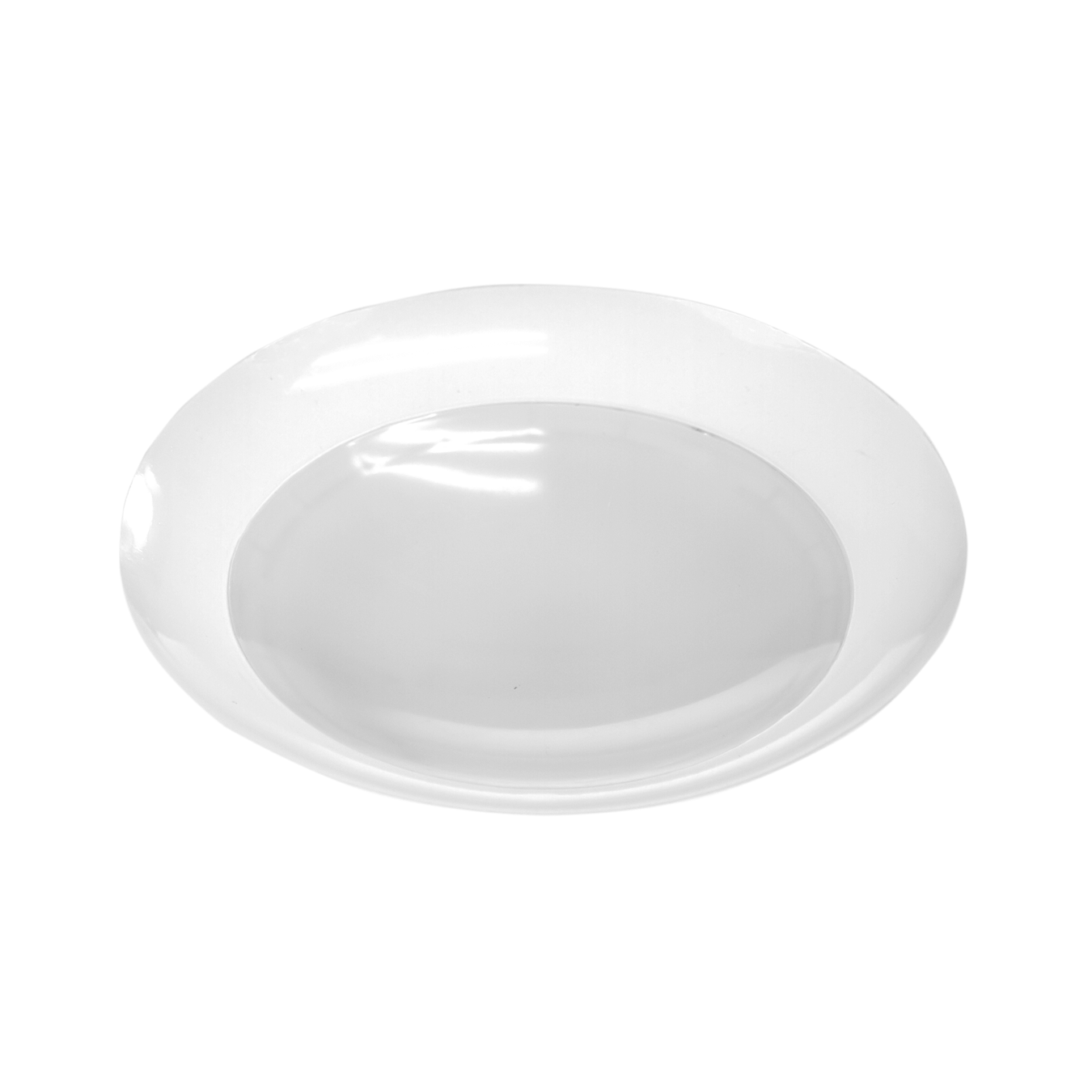

LED Disk Down Light

Kobi Electric Disk Down Lights mount and install into standard electrical junction boxes. The all-in-one fixtures are suitable for replacing down lighting and do not require the installation of cans or frame-in units. These fixtures wire directly into a junction box and are fully dimmable.

Disk Down Light Install

Junction Box Compatibility

  • 3/0
  • 4/0
  • Switch Boxes
  • Outlet Boxes

Benefits

  • Up to 80% more efficient than incandescent bulbs
  • Longer life and lower maintenance costs
  • Dimmable when used with approved dimming switch
  • Mercury and Lead-free, as well as UV and IR free
  • Instant on to full brightness
Category:
Description

SPECIFICATION

PART NUMBER WATTAGE (W) SIZE VOLTAGE (V) COLOR (K) TYPICAL LUMENS DIM
AP-DKDL6-10-30 10 6 120 3000 750 YES
AP-DKDL6-10-40 10 6 120 4000 750 YES
AP-DKDL6-10-50 10 6 120 5000 750 YES
AP-DKDL6-15-30 15 6 120 3000 1100 YES
AP-DKDL6-15-40 15 6 120 4000 1100 YES
AP-DKDL6-15-50 15 6 120 5000 1100 YES
